1.1 Power System: Strong Performance for Heavy Loads

Engine model: CA6DM2-39E3F, a "golden displacement" product in the heavy-duty truck industry. It is specially designed for commercial heavy vehicles. With a 11.04L displacement, it delivers 390hp maximum power at 1900rpm. Its low-speed high-power trait suits slope-heavy loads perfectly. Peak torque hits 1750Nm, providing stable output for startup and climbing. Emission complies with EU II standards, adapting to most developing regions worldwide.

1.2 Transmission & Drive System: Smooth and Durable

Transmission model: 12JSD220TA-B synchronized manual 12-speed gearbox. It features a main-auxiliary box structure and dual intermediate shafts. This design enhances load capacity, ensures smooth shifting, and reduces operating noise. Its service life is 30% longer than ordinary transmissions. Drive type is 6×4 full-time four-wheel drive, offering strong grip on muddy or gravel roads. Rear axle: 300 wheel reduction tandem axle, an industry benchmark. Single axle rated load is 16000kg, with total dual rear axle load reaching 32000kg. Optional speed ratios (5.26/5.92) fit high-speed transfer and low-speed heavy-load scenarios respectively.

1.3 Chassis Structure: Tough and Balanced

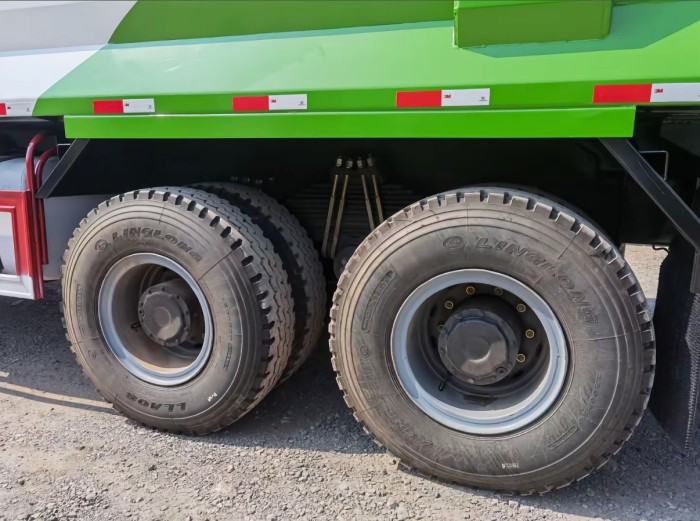

Frame specification: 300×80×(8+8+5)mm three-layer through-type high-strength special steel. Its torsional strength is 40% higher than ordinary double-layer frames. It resists deformation under long-term heavy-load impacts. Chassis weight is about 12500kg, balancing lightweight design and load capacity. Wheelbase is 4050+1350mm, ensuring both turning flexibility and driving stability. Tire size: 12.00R20 heavy-duty steel-belted tires. They are wear-resistant and puncture-proof, suitable for rough mining and construction sites.

1.4 Safety & Comfort: Protect Drivers and Enhance Efficiency

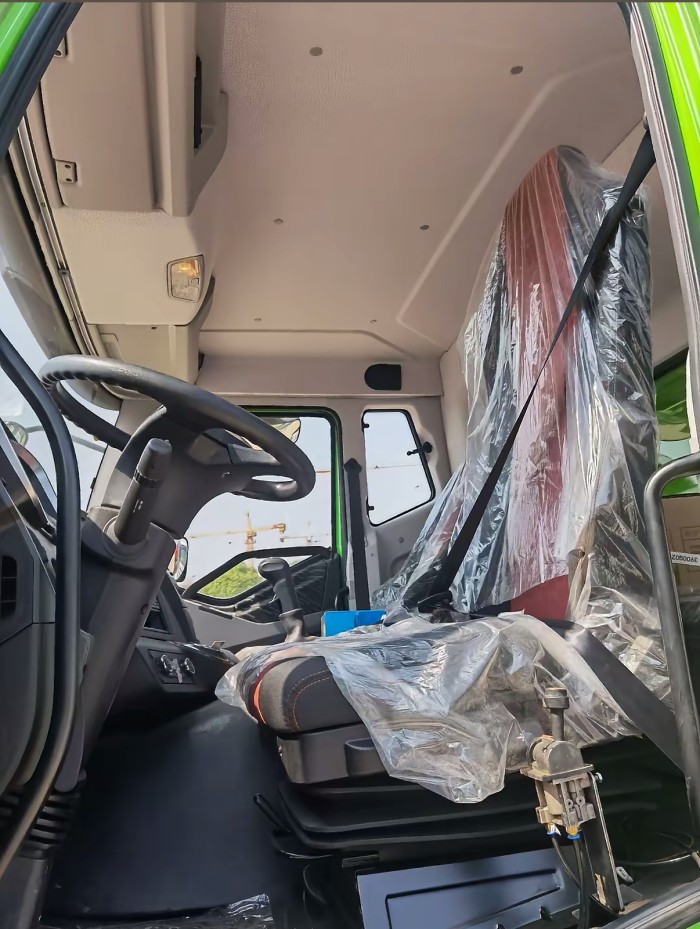

Braking system: Comes standard with FAWDE FCB chain brake system. It offers excellent retarding performance, shortening braking distance by 15% vs ordinary brakes. Front and rear independent dual-circuit air brakes (drum-type) are included, with ABS optional. Cab: J6P flat-top small semi-cab with double-layer sealing and heat insulation pad. It reduces noise by over 10dB and blocks engine radiant heat. Suspension & seats: Four-point air suspension filters road bumps effectively. Air shock-absorbing seats (with optional heating/ventilation) ease long-driving fatigue. Independent heater and cold air system are also available.

2.1 High Reliability: Cut Downtime Losses

The truck adopts 4U balanced suspension and double I-bar V-shaped layout. This boosts anti-roll capability by 25% and extends ball joint service life beyond 100,000km. Optimized frame belly connection enhances overall rigidity, reducing chassis failures. Key components (engine, transmission) are validated by millions of global users. Mean time between failures (MTBF) reaches 80,000km, minimizing operational interruptions.

2.2 Excellent Passability: Adapt to Complex Working Conditions

Raised cab design increases water tank ground clearance by 30mm. A new metal guard plate on the chassis prevents gravel scratches. 6×4 drive and large-diameter tires ensure stable travel on muddy slopes. No extra anti-slip devices are needed, saving time and costs for clients.

2.3 High Economy: Boost Long-Term Profitability

CA6DM2 engine optimizes combustion efficiency. It matches the 12-speed transmission’s precise gear ratios perfectly. This saves 2-3 liters of fuel per 100km vs similar models. Lightweight chassis design increases effective load capacity. For annual operation of 100,000km, it creates additional tens of thousands of yuan in revenue for clients.

FAW TRUCKS is a leading Chinese heavy-duty truck brand with 7 million global users. It topped the world’s heavy and medium-duty truck sales from 2018 to 2020. The J6P series inherits FAW’s 70-year R&D experience. It integrates proven technologies and user-centric design. Whether for mining transportation, infrastructure construction, or urban renovation, this truck delivers consistent performance and value. It is your reliable partner for global heavy-duty operations.
