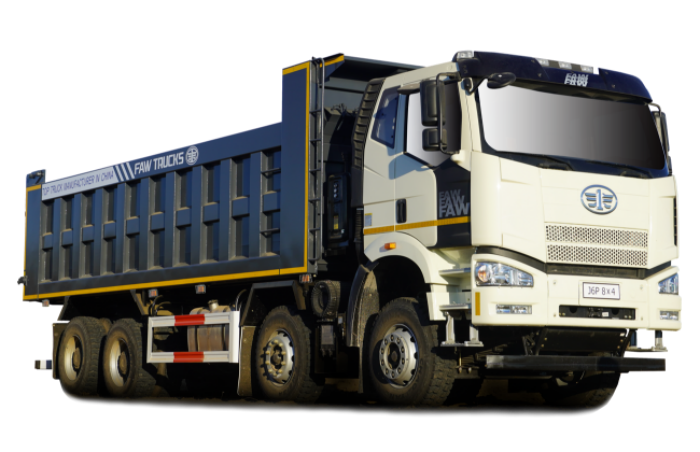

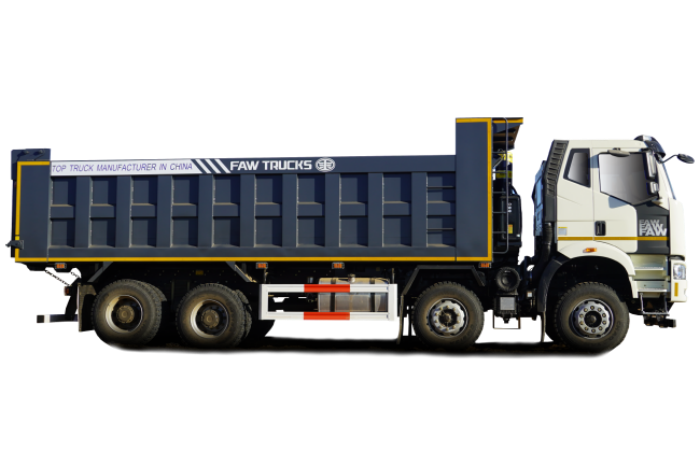

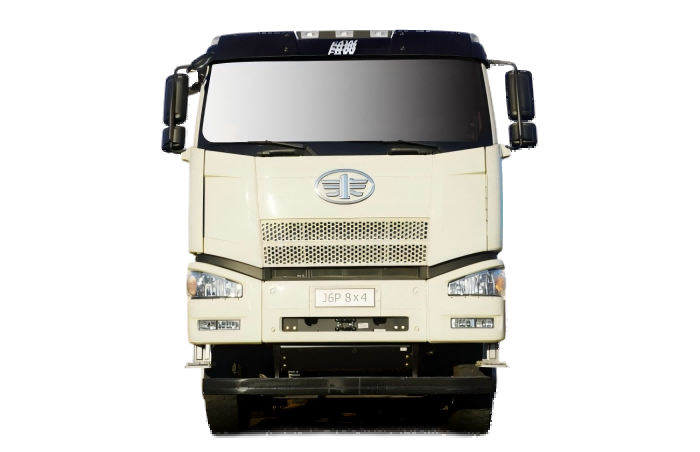

As a core model of the FAW CA3310 Series, this 8×4 heavy duty dump truck is customized for global heavy-load engineering scenarios. It excels in open-pit mines, large infrastructure sites, and short-distance bulk material transportation. The truck features a compact J6P flat-roof cab. It offers multi-version power options and dual emission configurations. This flexibility allows it to adapt seamlessly to environmental regulations and operational demands in different countries and regions. It is an ideal choice for businesses seeking efficient and compliant transportation.
The truck provides two engine displacement choices: 8.6L and 11.04-11.05L. Power output ranges from 350hp to 420hp. Maximum torque reaches 1900N·m at 1900rpm. It supports dual emission standards: EURO II for traditional markets and EURO V for high-environmental-protection regions. This dual setup ensures compliance with diverse market access requirements worldwide.
It matches a 12-speed manual or synchronized manual transmission. Gear ratios span from 12.1-0.78 to 15.6-1.0. The truck uses φ300 series rear axles with a gear ratio of 5.92 or 5.921. Front axle load capacity is 2×7500kg. Rear axle load capacity is 2×16000kg. The chassis weighs approximately 14000kg, guaranteeing stability during heavy-load operations.
Wheelbase specifications vary from 2100+3600+1350mm to 2100+4300+1350mm. The cargo box saddle accommodates volumes ranging from 7200-8000×2300×1400-1500mm. It comes equipped with 12.00R20 heavy-load tires. A dual-circuit air brake system is standard, with ABS available as an optional feature.
Power options cover 350hp (economic type) to 420hp (heavy-load type). Combined with dual emission versions, the truck precisely meets operational needs in both emerging markets and high-environmental-protection regions. This versatility helps reduce market access costs for global users.
The truck features front and rear multi-leaf spring suspensions and large-load-bearing axle sets. This robust design enables it to handle rough construction site roads with ease. It also ensures structural durability during long-term, high-frequency transportation. Maintenance frequency is reduced even in challenging working conditions.
Multiple wheelbase and cargo box specification options are available. Users can adjust the cargo box volume according to material types such as sand, gravel, or ore. This optimization improves transportation efficiency per trip. It also helps users quickly adapt to different material handling requirements.
Contact our sales team today to get a detailed quote and discuss how the FAW 8×4 Heavy Duty Dump Truck can meet your specific transportation needs.
