80 Tons Heavy Transport Extendable Low Bed Trailer
ZW GROUP
Shandong, China
15-35 days
150 sets

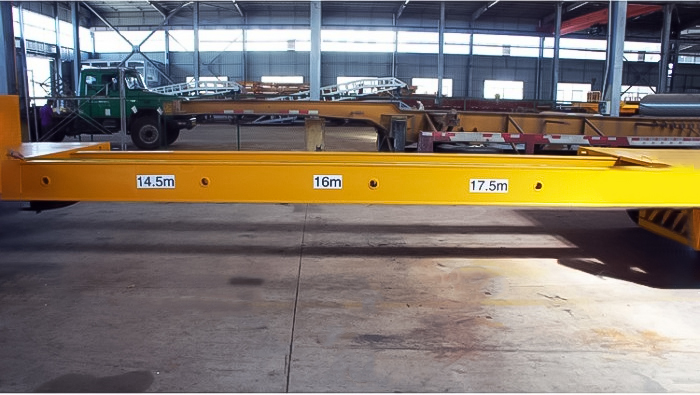

The extendable low bed trailer feature a sliding mechanism that allows the trailer bed to extend, accommodating long items like steel beams, pipes, pre-fabricated building components, wind turbine blades, and other oversized goods.
Extendable low bed trailer can handle a wide variety of overlength cargo, making them a versatile investment for businesses with diverse transportation needs.
Specification
1. Dimension
13050 x 3000 x 1140 mm (Extended: 19050 x 3000 x 1140 mm)
2. Tare weight
13200 kg
3. Payload
80 tons
4. The Max. steering angle
16°
Standard Configuration
1. Axle
12 ton, 5’’ round axle, 5 units, the last two axles are self-steering axles
2. Suspension
Mechanical suspension
3. King pin
2", bolt on type
4. Landing gear
28 ton, two speeds
5. Tire
10.00R20, 20 units
6. Rim
7.5-20, 20 units
7. Braking system
Gladhand valve, Wabco relay valve, 30/30 double brake chambers on all axles
8. Electrical system
Dual circuit, 7-way split pin receptacle plug, LED light
9. ABS
None
10. Painting
Blasting sand before painting, one coat primer and two coat finish painting,
