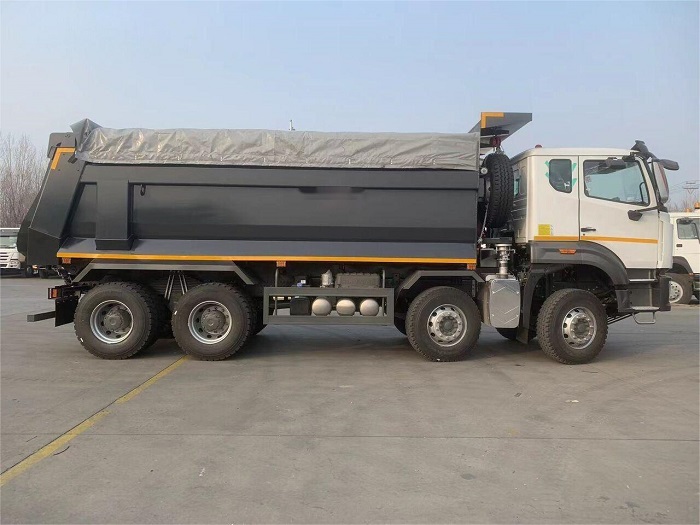

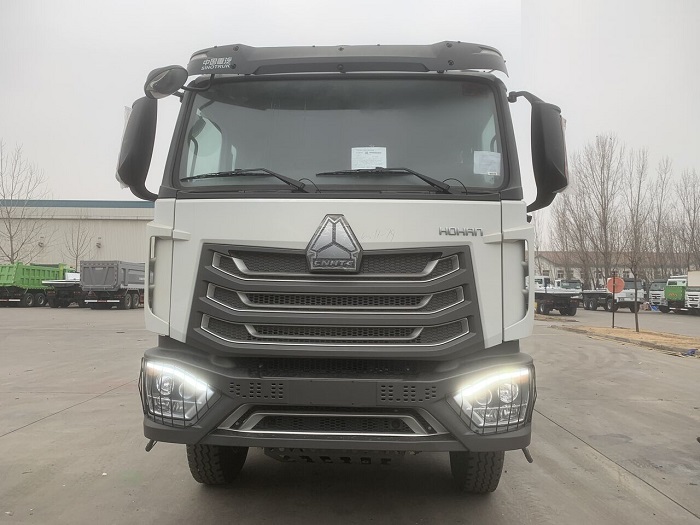

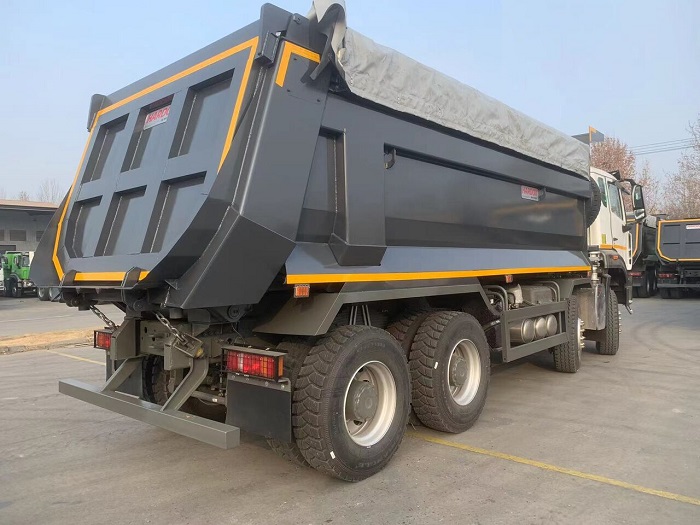

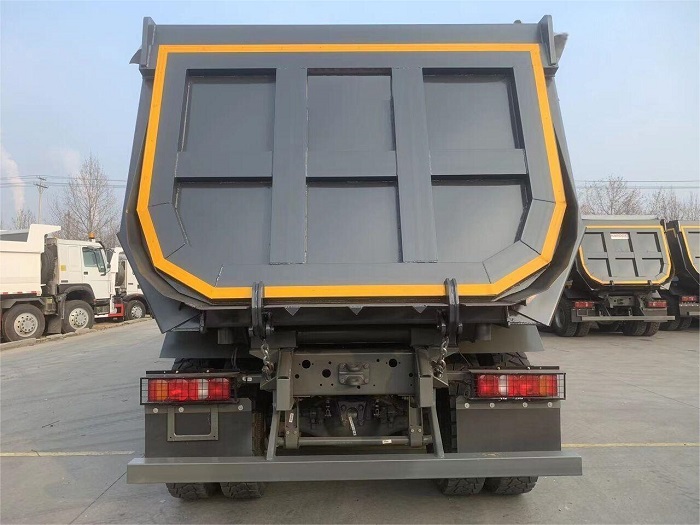

The HOHAN N7G 8x4 12 wheeler dump truck is a powerful and versatile vehicle designed for heavy-duty applications in construction, transportation, and mining industries. With its robust design, advanced features, and cost-effectiveness, the 12 wheeler dump truck stands out as an excellent choice for businesses looking to enhance their operational efficiency and profitability.
cabin | H77L(SINGLE BED) | ||||
engine | model | WD615.62 | WD615.87 | WD615.69 | WD615.47 |
fuel | diesel | ||||
displacement | 9.726L | ||||
emission standard | EURII | ||||
power | 196(266)/2200 | 213(290)/2200 | 247(336)/2200 | 273(371)/2200 | |
torque | 1100/1100-1600 | 1160/1100-1600 | 1350/1100-1600 | 1500/1100-1600 | |
transmission | model | HW19710 | |||
Control mode | MT | ||||
front axle | HF9 drum-type rated load of 9tons | ||||
rear axles | HC16/MCX16ZG 16tons speed ratio:5.73;4.8;4.42 | ||||
clutch | Single-plate dry diaphragm spring clutch, diameter 430(B)mm, hydraulically operating with air assistance | ||||
steering | Bosch steering gear, ZF steering gear, ZF steering oil pump, system pressure 21Mpa | ||||
suspension | Leaf spring suspension; air spring suspension | ||||
fuel tank | 300L | ||||
tyres | Rims:8.5-20,10 hole-steel Tyres:12.00R20 Tube Option:12.00R22.5 tubeless 315/80R22.5 tubeless | ||||
