Carbon Steel 3 Axles 45,000L Fuel Tank Semi Trailer

When it comes to fuel transportation, reliability, capacity, and safety are paramount. The 3 Axles 45,000L Fuel Tank Semi-Trailer, manufactured with precision and premium-grade materials, is designed to meet the rigorous demands of the petroleum logistics industry. Whether transporting gasoline, diesel, or other flammable liquids, this tanker trailer guarantees operational excellence while adhering to global safety standards.

🔧 Product Overview

• Model: 3 Axles Fuel Tanker Semi-Trailer

• Total Volume: 45,000 liters

• Compartments: 3 (Each 15,000L + 3–5% Expansion Margin)

• Overall Dimensions: 12,370mm (L) x 2,500mm (W) x 3,750mm (H)

• Function: Safe transportation of gasoline, diesel, and other petroleum products

This tanker is ideal for long-haul fuel distribution across regions, serving fuel stations, depots, and industrial facilities.

🛠 Design and Build Quality

Tank Structure

• Material: Q235B high-strength carbon steel

• Tank Body Thickness: 5mm

• End Plate Thickness: 6mm

• Wave Shield (Anti-Surge Plate): 4mm thick, to reduce fluid movement during transport

• Tank Type: Load-bearing design ensures strength and stability on rough roads

• Compartments: Segmented into 3 sections with individual safety valves and vents

Frame and Chassis

• Frame Type: Welded H-beam frame made of Q355B steel

• Landing Gear: Jost 17-inch, mechanically operated from one side

• Kingpin: Jost 3.5-inch heavy-duty

The frame is engineered for torsional stiffness, reducing stress under high loads or rough terrains.

🛡 Advanced Safety Features

Fuel transport is hazardous. Our trailer integrates a multi-level safety system:

Valve and Vent Systems

• Manhole Covers (x3): Each equipped with emergency vent, pressure/vacuum vent, overfill and vapor transfer holes

• Discharge Valves: Encased with an air spring gate and security lock

• Bottom Discharge Valve: Pneumatically controlled for precise flow regulation

• Emergency Valves: Pneumatically controlled, one per compartment

• Dipstick + Pressure Vent + Vapor Recovery System: One set per compartment for accurate level checks and vapor control

Protective Features

• Walkway: Anti-skid surface for manhole access

• Stainless Steel Handrails: Mounted on top of the tank for safety

• Rollover Coaming: U-section with sliding rail for fall protection

• Fire Extinguishers: Standard equipped

• Reflective Chevron and Safety Bar: Rear-mounted for visibility

🚚 Chassis and Mobility

Axle and Suspension

• Axles: 3x13 Ton BPW axles – renowned for durability

• Suspension System: Mechanical suspension suitable for diverse road conditions

• Tires: 13x 315/80R22.5 LINGLONG brand tires with one spare

• Rims: 9.0-22.5 x 13 pcs

Braking System

• System Type: Dual-line pneumatic air braking

• Chamber: 30/30 spring brake chamber on one axle

• ABS System: WABCO 4S/2M for anti-lock stability and enhanced control

🧰 Accessories and Additional Equipment

• Toolbox: 1 set for maintenance gear

• Hose Boxes: 2 sets with complete brackets for fuel hose storage

• Spare Tire Carrier: 2 sets

• Mudguards: Branded Meydan dual-tire setup

• Side Guard Rail: 400–550mm steel construction for lateral protection

• Electrical System: LED lights, compatible with 12V or 24V

🌐 Applications Across Industries

The 3 Axles Fuel Tank Semi-Trailer is an ideal asset for:

• Fuel Stations: Bulk deliveries of refined fuels

• Mining & Construction Sites: Supplying fuel to remote locations

• Logistics Companies: Reliable distribution in oil and gas supply chains

• Government Agencies: Emergency fuel deployment and disaster response

🌱 Environmental Compliance & Efficiency

The trailer integrates vapor recovery systems and anti-spill mechanisms that comply with international environmental standards. Fuel spillage and vapor loss are minimized through:

• Sealed manholes

• Vapor recovery lines

• High-precision pneumatic valves

These features contribute to cost-efficiency, reduced emissions, and greater operator safety.

🎨 Customization Options

• Paint Finish: Durable powder coating for corrosion resistance

• Logo & Branding: Customizable to client requirements

• Electrical Configurations: 12V or 24V system depending on towing vehicle

• Compartmental Layout: Adaptable based on fuel types or delivery schedules

✅ Why Choose This Fuel Tank Trailer?

📸 Product Showcase

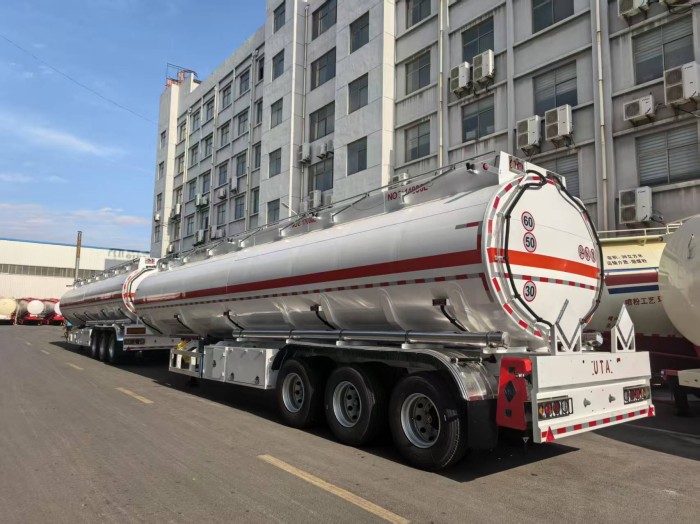

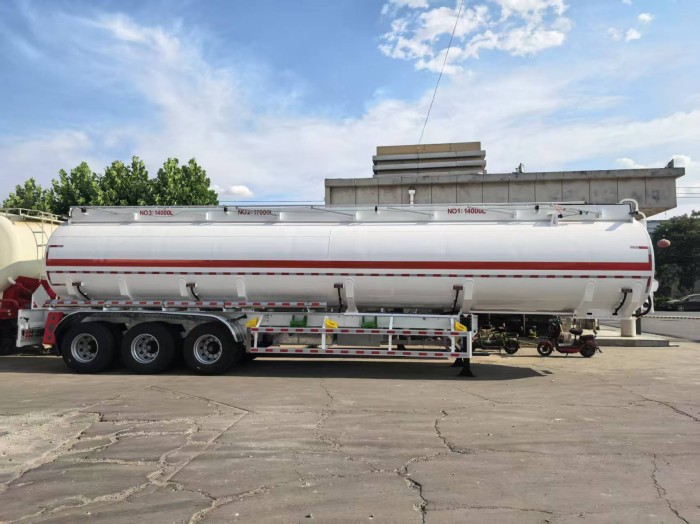

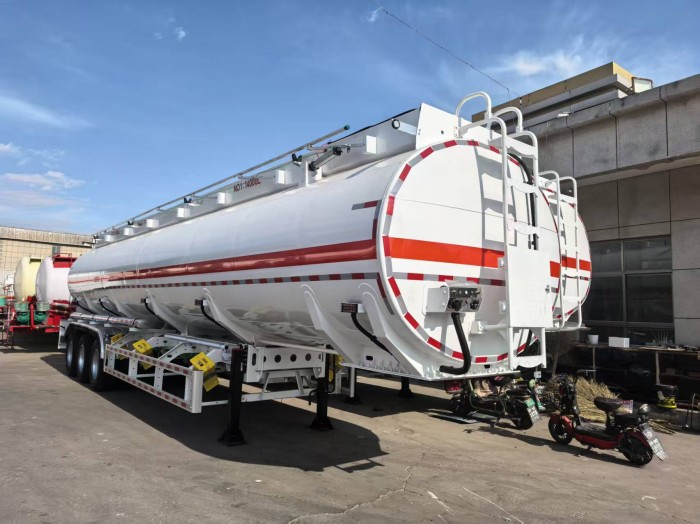

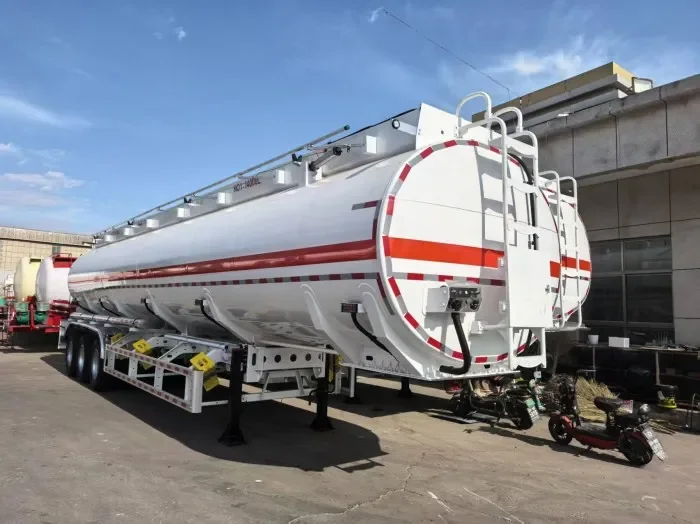

As shown in the product image, the trailer boasts a sleek, aerodynamic tank design with clean weld lines, professional finishing, and heavy-duty support legs. The ladder access system, top-mounted handrails, and safety rails make inspections and refills secure and convenient.

📦 After-Sales Support and Service

Our team provides:

• Full user manuals and operation training

• Spare parts supply

• 24/7 technical support

• Global delivery logistics

We ensure that every fuel tank trailer is ready for action upon delivery.

🚀 Conclusion

The 3 Axles 45,000L Fuel Tank Semi-Trailer offers a perfect blend of durability, capacity, and safety for companies operating in the petroleum and energy logistics sector. Whether you’re running a national fuel distribution network or providing essential energy to industrial operations, this trailer delivers performance you can trust—trip after trip.

Looking for high-capacity fuel tank trailers for sale? Contact us today and customize your tanker for your operation.
