Strategic Infrastructure & Heavy Haulage Solutions
Engineering Heavy-Duty Semi Trailers for East Africa’s Demanding Transport Corridors
From high-tonnage mining haulage to cross-border corridor logistics: How ZW Group aligns structural metallurgy, axle dynamics, and duty-cycle engineering with real-world African operating conditions.
Executive Briefing: Why Semi Trailer Exporting Requires Localized Engineering, Not Just Low Unit Pricing
Semi trailer export competition in emerging markets has fundamentally shifted. The race-to-the-bottom price warfare waged by generic traders fails to address the operational reality of regional logistics: Total Cost of Ownership (TCO), fatigue life of frame rails under dynamic torsional loading, and vehicle uptime in harsh environments.
A high-profile bilateral diplomatic exchange between ZW Group executive leadership and H.E. Oliver Wonekha, Ambassador of the Republic of Uganda to China, held in Beijing, underscored a crucial industry insight: regional infrastructure growth requires tailor-made transport equipment built around local axle-load regulations, road profile stress factors, and duty cycles.
"Successful heavy haulage integration in East Africa depends on deep structural alignment with regional road networks, unpaved mining feeder roads, and cross-border transit laws. Purchasing standard-spec trailers for non-standard environments guarantees premature frame cracking, suspension shearing, and crippling operational downtime."
Technical Breakdown: ZW Africa-Spec vs. Standard Commercial Export Trailers
Understanding the difference between initial purchase price and lifetime operating cost is essential for fleet managers, logistics contractors, and procurement departments. Below is an engineering comparison matrix showing how ZW Group optimizes trailers for African haulage:
| Engineering Parameter | Standard Export Trailer (Trader Spec) | ZW Heavy-Duty Africa Spec |
|---|---|---|
| Main Beam Material | Q345 Carbon Steel (Yield Strength ~345 MPa) | T700 / Q690 High-Tensile Steel (Yield Strength ~690 MPa) |
| Main Beam Structure | Upper/Lower Flange: 12mm/14mm; Web Plate: 6mm | Reinforced Flange: 16mm/18mm; Web Plate: 10mm-12mm with Dual-Plate Neck |
| Axle Configuration | Standard 13-Ton Light Duty Axles | 16-Ton Heavy Duty FUWA / BPW Heavy Off-Road Axles |
| Suspension System | Standard 0.9mm Leaf Springs (8-10 Leaves) | Heavy-Duty 16mm x 90mm x 10-Leaf Heavy Springs / Reinforced Bogie Suspension |
| Kingpin Integration | 2-inch Single Bolted Plate | 2-inch or 3.5-inch Heavy Duty JOST Interchangeable Kingpin on 12mm Steel Baseplate |
| Crossmember Spacing | 500mm – 600mm Spacing | 300mm – 350mm Dense Interlocking Channel Crossmembers |
| Surface Protection | Single Layer Alkyd Paint over Manual Sanding | SA 2.5 Shot Blasting + Zinc-Rich Epoxy Primer + Polyurethane Topcoat |
Real Operational Impact: Fleet Fleet Reliability Analysis
Consider a real-world case study comparing two fleet operations carrying 60-ton mining machinery and bulk copper ore between the Democratic Republic of Congo (DRC) and the Port of Dar es Salaam:
Scenario A: Low-Cost Standard Trader Trailers
3 Months: Micro-fractures appear on the main beam goose-neck due to flex overload.
6 Months: Suspension torque rods fail, causing rapid, uneven tire wear and alignment loss.
12 Months: Frame twisting requires structural welding; trailer spends 35% of operational time in workshop.
Financial Outcome: Unscheduled downtime destroys revenue; total repair costs exceed initial purchase savings within 14 months.
Scenario B: ZW Customized Heavy-Duty Trailers
12 Months: Zero structural cracks on high-tensile T700 main beams under continuous load.
24 Months: FUWA heavy-duty axles and reinforced suspensions operate with routine maintenance only.
36+ Months: Trailer retains high resale value, maintaining 96% operational uptime across dirt and paved roads.
Financial Outcome: Maximum ROI, low cost per kilometer, and uninterrupted fleet service contracts.
Comprehensive Trailer Portfolio for East African Logistics Application
ZW Group manufactures a wide line of heavy transport equipment, tailored to the specific weight distribution limits, fifth-wheel heights, and road regulations across East Africa.
1. Heavy-Duty Lowbed Semi Trailers (60T to 150T Capacity)
Designed for heavy machinery haulage—such as excavators, bulldozers, transformers, and industrial plant components—our lowbed trailers feature hydraulic ramps, heavy-duty detachable goosenecks, and multi-axle steering options.
Main Beam: 500mm to 550mm height, heavy-duty submerged arc welded high-tensile steel.
Ramp Systems: Heavy mechanical spring ramps or hydraulic folding ramps for easy equipment loading.
Floor Plate: 4mm to 5mm reinforced checker plate with integrated lashing rings.
Axle Options: 3-line 6-axle, 4-line 8-axle, or heavy tri-axle setup with FUWA/BPW units.
2. Heavy Tipper & Rear Dump Semi Trailers (30m³ to 60m³)
Purpose-built for aggregate haulage, mining operations, sand transport, and bulk clinker movement. Featuring high-strength HYVA hydraulic tipping cylinders and abrasion-resistant steel bodies.
Body Design: U-Shape low center-of-gravity or Rectangular high-volume configuration.
Material: NM450 / HARDOX wear-resistant steel or high-tensile Q345 steel.
Hydraulics: Genuine HYVA front-lifting hydraulic cylinder systems for safe, smooth dumping.
Stabilizers: Anti-rollover wide-track chassis design with heavy-duty rear dump hinges.

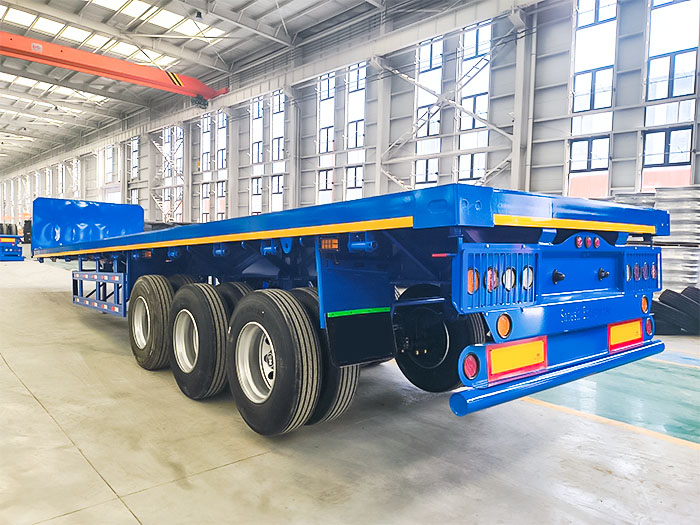

3. Container Flatbed & Sidewall Semi Trailers (20ft, 40ft, 45ft)
The workhorses of cross-border trade corridors. Optimized for multi-modal ISO container transit, bagged cement, agricultural goods, and general palletized freight.
Twist Locks: 4, 8, or 12 units of ISO container twist locks for flexible container layouts.
Sidewalls: Removable or drop-down side panels (600mm to 1200mm height) with reinforced stakes.
Crossmembers: Dense steel channel lattice to prevent localized floor sagging under forklift loading.
Custom Features: Spare tire carriers, lockable toolboxes, and fuel storage tanks for long-distance runs.
Frequently Asked Questions (FAQ) – Heavy Trailer Procurement
How does ZW Group customize semi trailers for African road conditions?
We engineer trailers specifically for local conditions: using high-tensile steel (T700/Q690) for main beams, thickening flange and web plates, reinforcing crossmembers at 300mm intervals, upgrading to 16-ton heavy-duty axles, and installing heavy multi-leaf or bogie suspensions designed to handle dynamic off-road shock.
What is the typical manufacturing lead time for custom semi trailers?
Standard semi trailers (flatbed, container chassis) generally take 15 to 20 days. Specialized or custom-engineered units (multi-axle lowbeds, heavy tippers) typically require 25 to 35 days from final CAD drawing approval.
Can ZW Group match trailer specifications with our existing prime movers/tractors?
Yes. We custom engineer kingpin heights (1200mm to 1400mm+), kingpin sizes (2-inch or 3.5-inch), landing gear positions, electrical connectors (24V 7-pin standard), and air brake line configurations to ensure seamless coupling with tractor brands such as Howo, Shacman, FAW, Volvo, Scania, and Mercedes-Benz.
What ocean freight options are available for shipping trailers to East Africa?
We offer three primary shipping methods: Roll-on/Roll-off (RORO) for full factory assembly protection; Bulk Vessel stack shipping (stacking 2 to 3 trailers to optimize freight volume); and 40ft High Cube Container shipping (for flatbeds/tippers designed for modular SKD assembly).
How does ZW Group manage spare parts and long-term technical support?
We supply full OEM spare parts kits—including brake shoes, air chambers, leaf spring bushings, twist locks, and lighting modules—alongside equipment deliveries. We use tier-one international component suppliers (FUWA, BPW, JOST, HYVA), making replacement parts easily accessible across major East African logistics hubs.
Planning Your Next Transport Fleet Purchase?
Avoid costly downtime, structural failures, and mismatched specifications. Talk directly with our senior heavy transport engineers to configure a semi trailer engineered for your exact route conditions, payload weights, and budget requirements.
When reaching out, please share:
Target Payload Type & Maximum Weight (e.g., 80T Excavator, 50T Bulk Ore, 40ft Containers)
Primary Operating Terrain (Asphalt Highway, Unpaved Mine Feeder Roads, Mixed Off-Road)
Prime Mover Specs (Fifth wheel height, fifth wheel capacity, tractor axle layout)
Estimated Fleet Quantity & Target Delivery Destination / Port
Direct Factory Engineering Support | Rapid CAD Design Turnaround | Global Export Logistics
