There is a gooseneck in the front of lowboy semi gooseneck trailer for sale frame, which is mainly used to connect saddle of the tractor and play the importmant role. There is a working platformat behind the custom lowboy trailer's gooseneck, which has the characteristics of low bearing plate, wide platform, light weight, large load and efficient transportation.
Tested and Proven structure of cargo box is constructed with profiled steel frame, corrugated plate and mould pressed steel stake .
Trailer Model | lowboy semi gooseneck trailer for sale |
Specifications | |
Overall Dimension (Lx W x H) (mm) | 13000*3000*1650mm |
| Tare Weight (KG) | 9,000 |
Loading Weight (KG) | 60 ton common good or 30-40ton vehicles or machinery with wheels or tracks(concentrated stress on the trailer) |
Wheel Base (mm) | 6880mm+1310mm+1310mm |
Semi Trailer Chassis | |
Platform plate | 4mm Diamond plate |

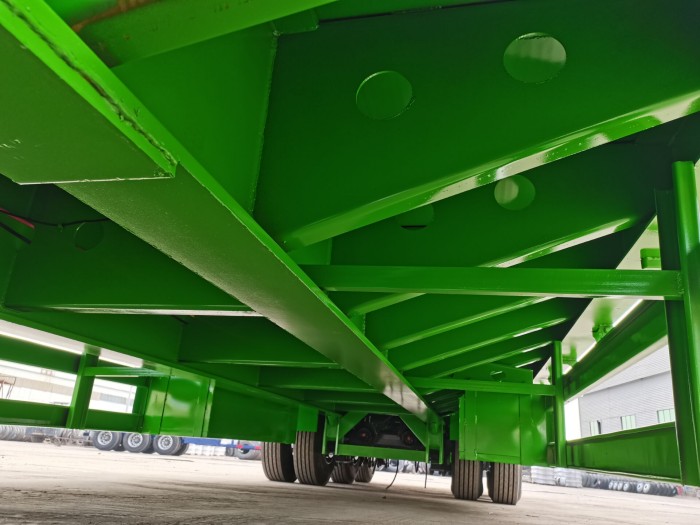

The material of Main beam | The height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. Q345B carbon steel |
Ladder | Common Ladder or Hydraulic Ladder |
Tool Box | 1 Standard |
Reliable dual circuit air brake with quick release valve and quick response of wheel cylinder ensures safe on-road and off-road operation
