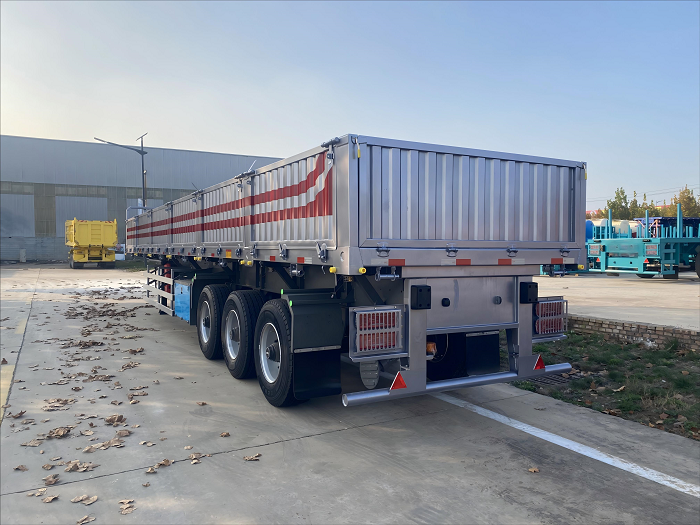

| Product Name | Side wall Semi Trailer |
| Dimension(Lx W x H)（mm） | 12400*2610*1550mm (customizable) |
| Inside dimension | 12280*2300*600mm (customizable) |
| Tare weight (kg) | 7500 (depends on final configuration) |
| Max Loading Capacity (kg) | 40-80ton（customizable) |
| Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
| Side Beam | 16mm channel steel(material is Q235B steel) |
| Bottom plate thickness (mm) | 3mm (customizable) |
| Sidewall Thickness (mm) | 1.2mm (customizable) |
| side wall height | 600mm (customizable) |
| Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 (Brand optional) |
| Rim | 9.00-22.5/8.00-20/8.50-20 |
| King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional |
| Suspension | Mechanical Suspension Air Suspension (American or Geman) |
| Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
| Twist-lock | 12 units (customizable) |
| Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. |
| Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
| ABS System | None or installed as your requirement. |
| Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) |
| Color | As per customer requirement |
| Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
| Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
| Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting |
